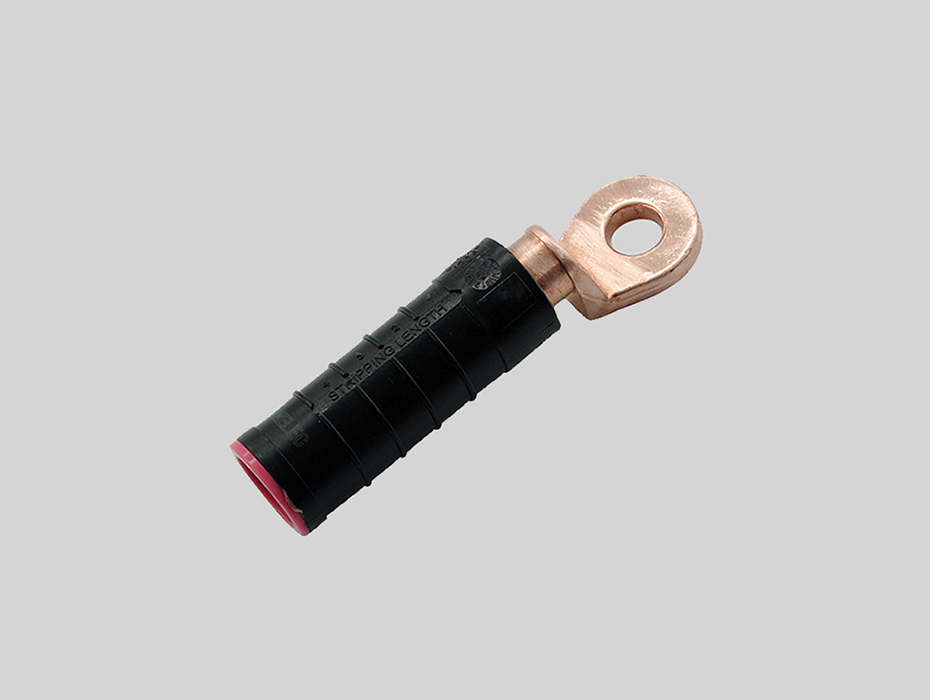

CPTAU Pre-insulated Bimetal Lug

Labels: Crimping Lug; Compression Lug;

Application:

Used to establish connection between low voltage aerial cable and electrical equipments. From 16 to 150 mm².

Material:

Palm: Cu ≥ 99.9%, barrel: Al ≥ 99.5%

Insulation sheath is made of weather and UV resistant material.

Feature:

• Clear markings on insulation sheath to indicate crimping die, crimping sequence and times, cross-section of conductor and stripping length.

• Cross-section of conductor can be easily identified by the color of elastomeric cap.

• Elastomeric cap and pre-filled silicone grease ensure superior waterproof.

• Tested for watertightness test.

Standard: EN 50483-4, NF C 33-021
